Paradiso
Rotating gangway
Besides the two fixed gangways, Swissway offers the Paradiso with rotating slewing frame which gives the possibility to rotate the gangway towards the quay at an angle of 90° to both sides. The slewing frame can easily re–position the gangway to the sides without the need to re-dock the yacht for maximum flexibility.
Specifications
- All structures are made of AISI 316 stainless steel, all visible parts are with a high gloss polished finish.
- Solid teak strip shaped walking surface.
- The sliding blocks are made of antifriction material non-hygroscopic.
- Automatic railing on starboard. Portside or both sides is optional.
- AISI 316 stainless steel trunk is without finishing and not watertight

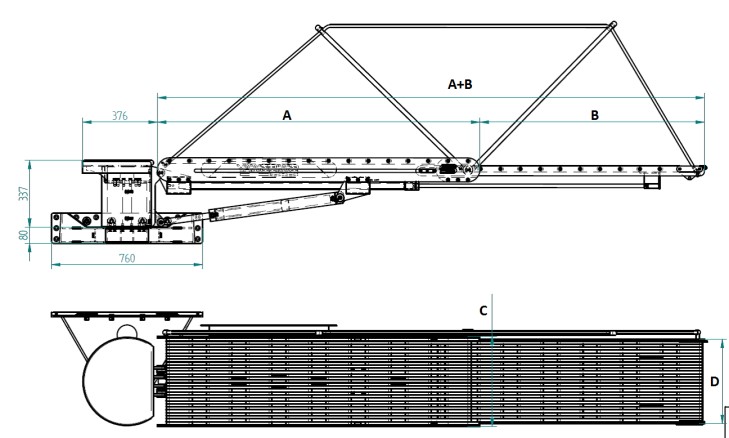

Dimensions in mm
| Model | A+B | A | B | C | D | WEIGHT |
|---|---|---|---|---|---|---|
| 2400 | 2390 | 1410 | 980 | 480 | 435 | |
| 2800 | 2790 | 1610 | 1180 | 480 | 435 | |
| 3200 | 3190 | 1810 | 1380 | 480 | 435 | |
| 3600 | 3590 | 2010 | 1580 | 480 | 435 |
- Topping 45° up/down
- Rotation 90° portside 90° starboard
- S.W.L. for all types: 150k
- Weight is excluding hydraulic hoses, liquids, powerpack and electronics.
